Commercial-Grade Made-in-USA Dust Collector increases visibility while abrasive blasting - pulls 300-350 CFM!
180-DC INSIDER II - Removes dust for all-day cabinet blasting! Recommended for improved visibility within Skat Blast® Cabinets up to 5 ft wide. (Smaller cabinets work best with Vac-50 or 55 Vacuum System.) Skat Blast® Dust Collector with patented HEPA Filtration traps ultra-fine dust particles down to 0.3 microns and keeps 99.97% dust inside the dust collector and out of your shop. Non-stick HEPA Filter Membrane resists clogging. Most dust simply falls off the filters.
Model 180-DC has Triple Bank HEPA Filtration. The result is 40% more airflow through the cabinet and dust collector, and increased visibility and dust collection over older bag-style units. Plus, 125% larger filtering area!

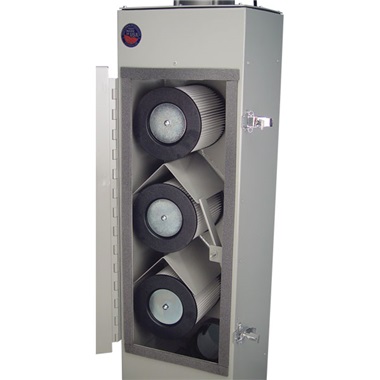

Here's how it works: dust-laden air enters back of the dust collector through a 5" diameter, 6 ft long hose (included) and settles on the outside of the HEPA Filter Cartridges. Cartridges are easily accessible through the front door. Shaker lever assembly, located on the rear of the unit, operates manually to shake dust and dirt off the filter cartridges. Dust falls down to the bottom drawer. To empty, simply open and remove drawer and discard residue. Fast and easy!
Large 10"w x 28"h hinged front door makes filter cartridge changes and inspection fast and easy. 1/3 HP, 3450 RPM, 115 volt motor and 8-3/4" diameter blower wheel pull 300-350 cfm. Includes (3) 8"H x 7-1/4" dia HEPA Filter Cartridges, manual shaker assembly, clean-out drawer (10-1/2"w, 12-1/2"d, 4"h with gasket), 6' long x 5" dia hose, and 4" rear outlet. Made in USA.
Greatly improves visibility over Vac-50 or 55 due to larger filtering area and 5" diameter hose. Recommended for cabinets up to 5 feet wide. May be special-ordered in place of Vac-50 or 55 at extra cost.
16"W, 15"D, 56"H. Ship wt 159 lbs motor freight. Unload or Liftgate Service is available for this equipment (extra cost, in addition to freight adder). Click on Unload or Liftgate Service in suggestions below for details.
WARNING: Do not use Dust Collector System as a wet vac. Electrical shock and serious injury could result. Dust Collector filters are guaranteed for 90 days against mfg defects. Dust Collector motors are guaranteed for 1 year. Collectors are not for collecting wood shavings or sawdust.
Size: 16" wide, 15" deep, 56" high
Construction: 20 gauge steel
Ship Wt: 159 Lbs (Motor Freight)
Volts: 115 volts, 6 amps
Motor: 1/3 HP, 3450 RPM, continuous-duty
Blower: 8-3/4" dia, 300-350 CFM
Opening: 10"w, 28"h - Hinged front door
Filter Cartridge: 3 washable, air-dry type HEPA. 8"h, 7-1/4" dia
Drawer: 10-1/2" wide, 4" high, 12-1/2" deep
DC Hose: 5" diameter, 6 ft long
Outlet, Rear: 4", fits 4" stove pipe
Shaker: Manual
Decibels: 70 front, 74 rear
• PATENTED HEPA FILTRATION traps ultra-fine dust particles down to 0.3 microns and keeps 99.97% dust inside the dust collector and out of your shop.
• TRIPLE BANK HEPA FILTRATION (3 filters) has 125% more filtering area than old-style bags used on 176-DC. The result is 40% more airflow through the cabinet and dust collector, increasing visibility and dust collection.
• NON-STICK FILTER MEMBRANE - resists clogging. Most dust simply falls off filters. To clean, shut unit off, shake down filters with lever on rear of unit, then empty drawer.
