The Fast and Easy Way to Install Compressed Air Piping!
The RapidAir MaxLine Piping System is a fast, effective way to install compressed air piping in your shop while eliminating moisture and pressure drop. Just cut, bend, tighten, and install.
1/2" MaxLine Air Piping System - For 3-5 HP (20 cfm) compressors up to 100 ft. A system for 1-stage and 2-stage compressors up to 20 cfm and a maximum run of tubing up to 100 ft.

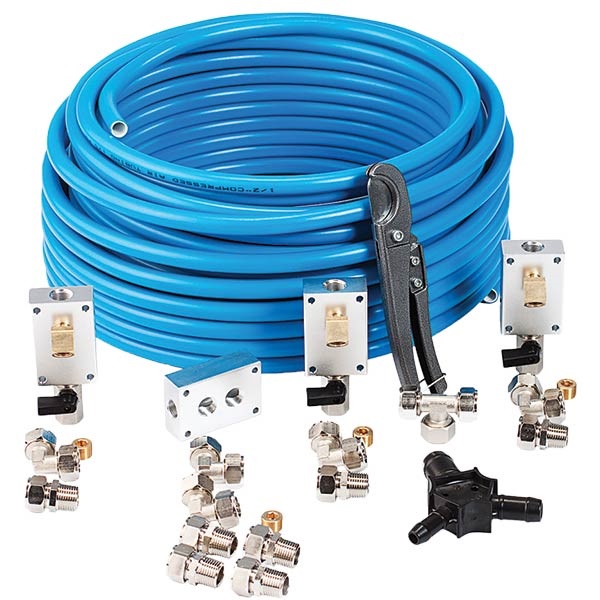

1/2" MaxLine Air Piping System includes: 100 ft of 1/2" ID MaxLine Tubing, 5 elbows, 1 tee, 3 outlet kits, 1 manifold kit, and cutting & reaming tool. Ship wt: 18 lbs.
The 3410-12 MaxLine Kit will deliver air where you need it and provide years of trouble-free service. It is easy to install and will give your shop or garage a professional look. MaxLine Tubing is a corrosion-resistant, leak-proof, 3-layer plastic-coated piping with inner aluminum core. The tubing is semi-rigid and can be bent, curved, or formed by hand and will maintain its desired shape with no sag. Its smooth interior wall will never build up rust or scale, making it an efficient air system. MaxLine Tubing is easily mounted to the wall with clips and can be remodified at any time.
All MaxLine Fittings are nickel-plated brass construction with double o-ring compression design for a leak-proof system. Plus, if a change in your piping system is required at a later date, all fittings are reusable.
MaxLine Tubing Specifications -
1/2" (.48) inside diameter
Operating Pressure:
175 psi @ 70°F;
140 psi @ 140°F
Temperature Range:
-40°F to 140°F;
Meets OSHA guidelines
