High-quality, long-lasting, dependable - a great choice for any shop!
Designed and engineered for industrial applications with a pump rating of over 50,000 hours and 100% duty cycle. QT Pro Series deliver higher volumes of air while consuming less energy. QT 5, 7.5 & 10 HP models have a new pump design with longer stroke and extra cooling fins to the cast-iron cylinders. A longer stroke vs. a larger bore, along with beefed-up crankshaft and bearings, gives Quincy pumps more torque, enabling the pump to deliver consistently higher CFM throughout the PSI range. Along with quiet operation, this drops the discharge temperatures dramatically, increasing volumetric efficiency at much lower pump RPM, generating smoother operation and longer life. Quincy Air Compressors are the perfect choice to run a blast cabinet on a continual basis, or run air tools or paint spray equipment. Made in USA.

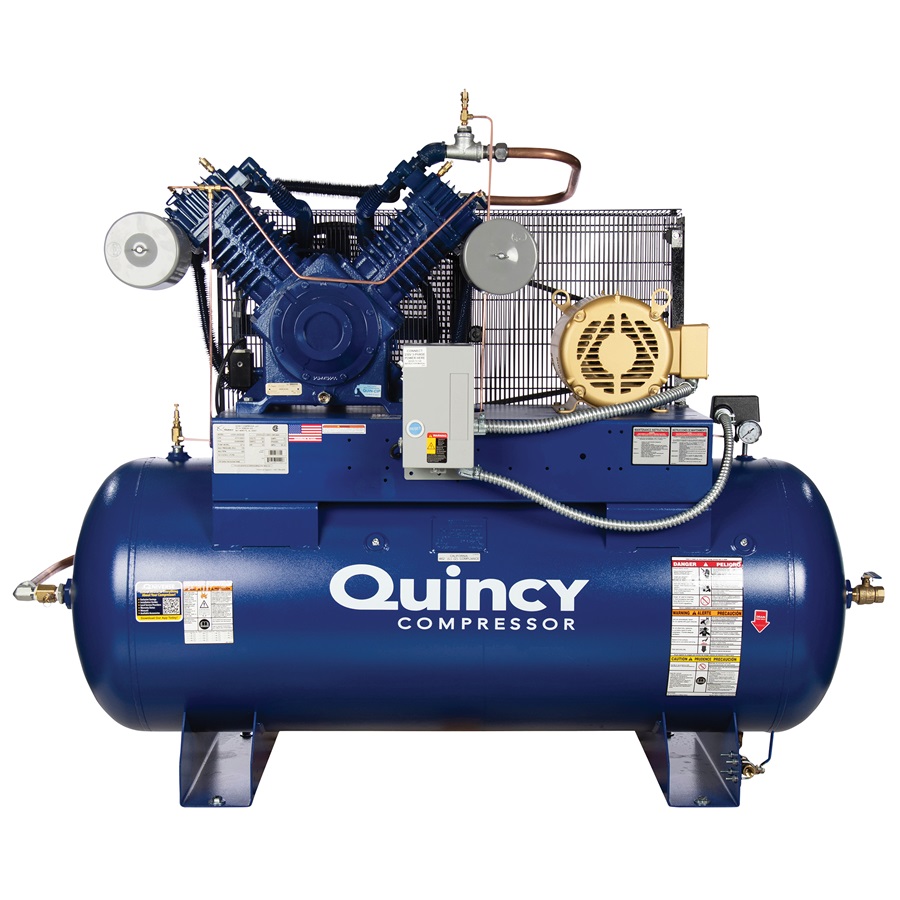

QT-10 Pro 10 HP, 2-Stage, 120-Gallon Horizontal, 3 Phase - Body Shop Special! Features a heavy-duty 10 HP 3-phase motor with pre-wired & mounted magnetic starter. Please specify voltage when ordering.
MODEL 8805-20DS SPECS:
- 10 HP
- 2-stage
- 120-gallon horizontal ASME tank
- Cast-iron crankcase and cylinders
- 36 cfm @ 175 psi
- Maximum air pressure 175 psi
- Low 682 pump RPM
- Splash lubrication
- 208/230/460 volt, 3 phase. Please call to specify voltage.
- Mounted & pre-wired magnetic starter
- 56"H, 72"W, 29"D, ship wt: 860 lbs
- 1-year warranty on the complete unit top to bottom (service centers nationwide)
*Starting amperage may be double the running amperage. Consult your electrician and refer to manufacturer manual.
Built to order - allow 2-3 weeks lead time. Drop shipped direct from manufacturer.
